🔥 2D Thermal-Induced Fracture Simulation

🚀 Granite Disk Thermal-Induced Fracture

This benchmark explores a 2D plane strain granite disk subjected to thermal loading. The outer radius is \( R_{\text{out}} = 1 \,\text{m} \), and the inner heated core has a radius of \( R_{\text{in}} = 0.2 \,\text{m} \).

🔧 Basic Setup:
• The core region has a higher thermal expansion coefficient: \( \alpha_{t,\text{core}} = 4.3 \times 10^{-5} \,\text{m/m-°C} \), compared to the outer region: \( \alpha_{t,\text{outer}} = 3.5 \times 10^{-5} \,\text{m/m-°C} \).
• The temperature in the core is increased from 25 °C to 100 °C.

🔬 Four simulation cases:

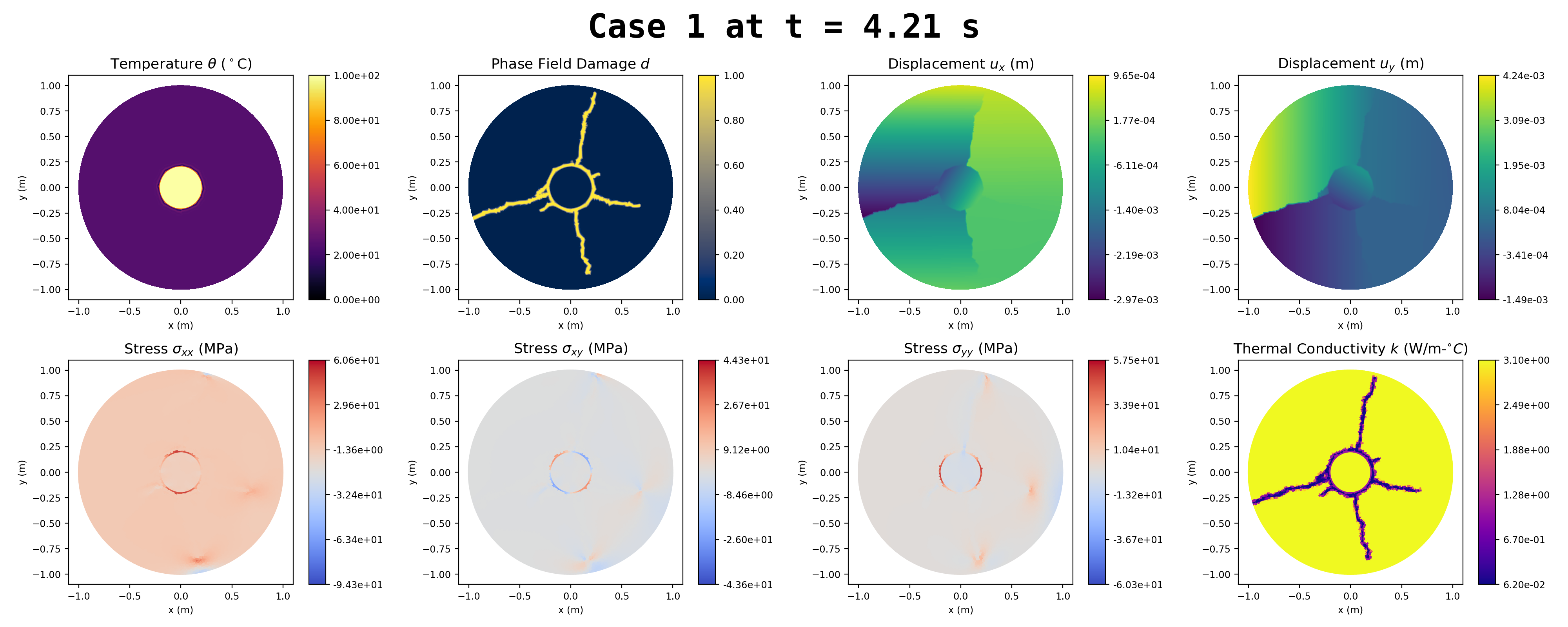

1. Case 1: Crack propagation in the core is prevented by setting \( d = 0 \).

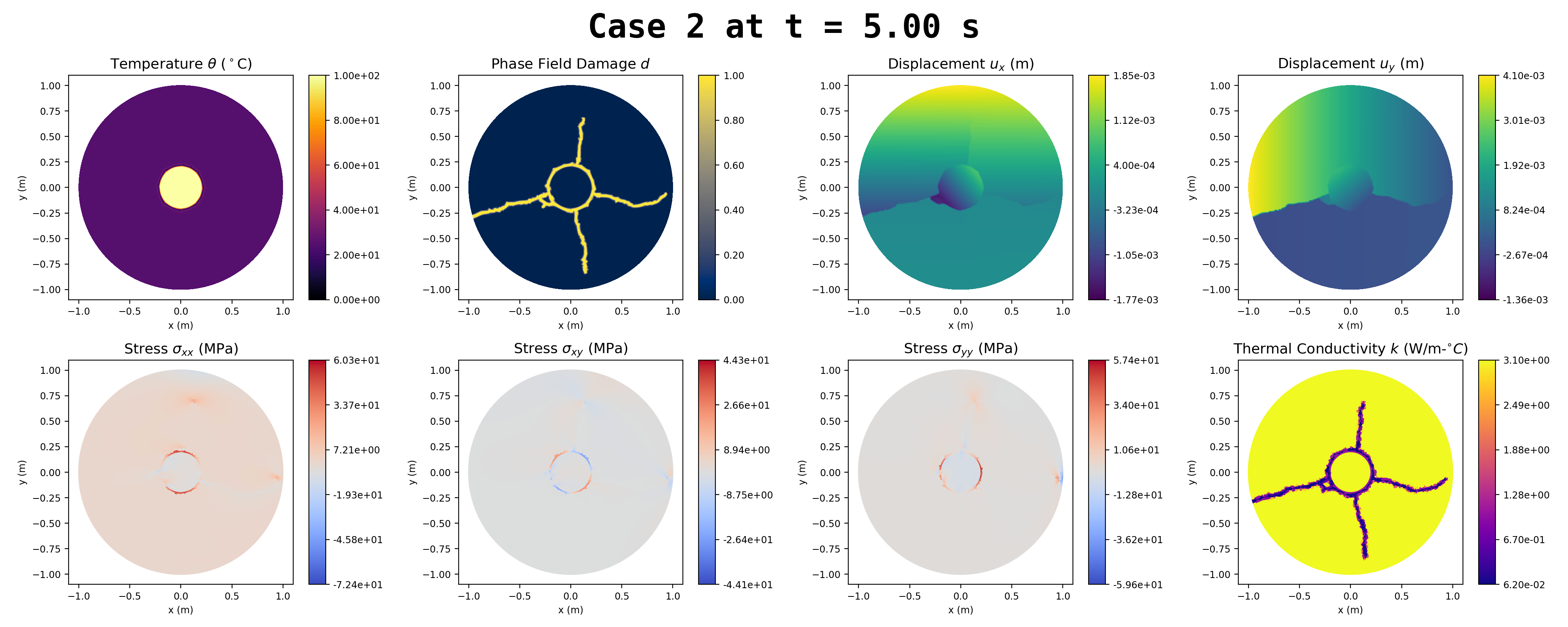

2. Case 2: Crack is allowed everywhere, but \( G_{c,\text{core}} = 3.0 \times 10^{-3} \,\text{MPa·m} \), \( G_{c,\text{outer}} = 3.0 \times 10^{-5} \,\text{MPa·m} \).

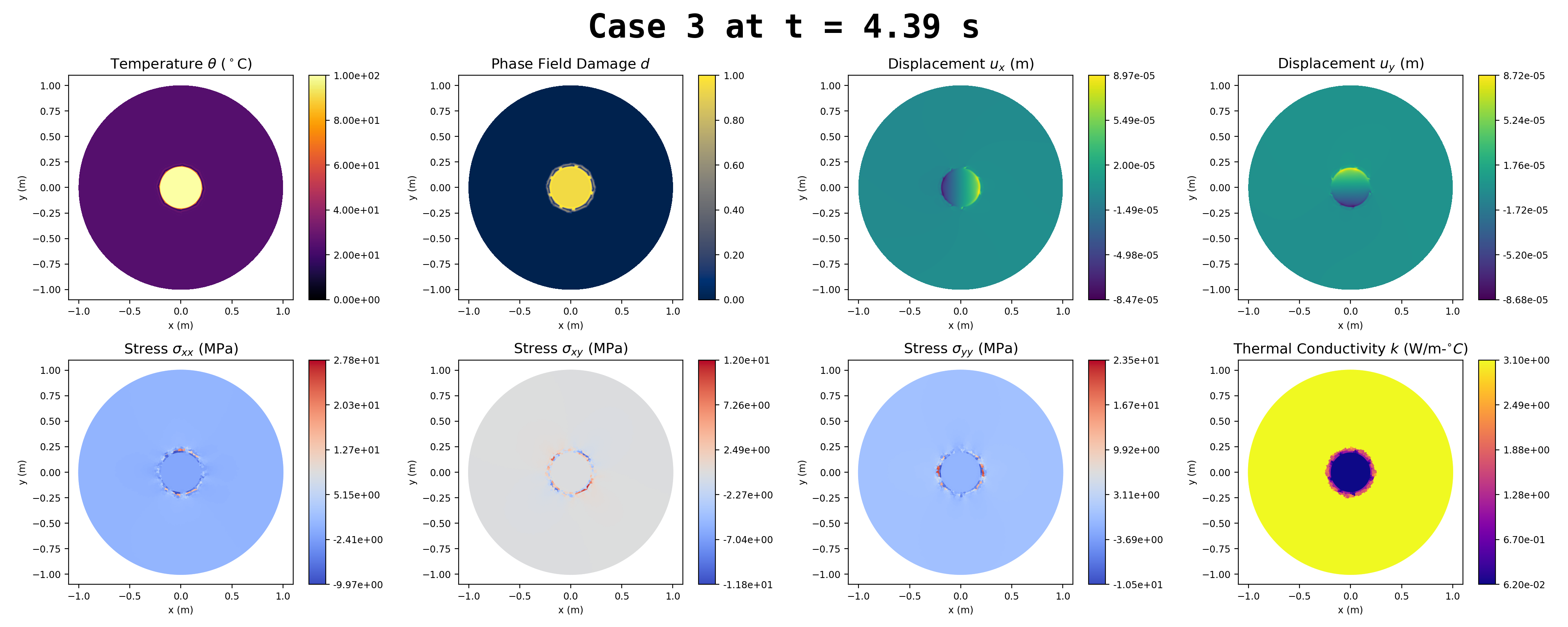

3. Case 3: Crack is allowed everywhere, and fracture toughness is uniform: \( G_{c,\text{core}} = G_{c,\text{outer}} = 3.0 \times 10^{-5} \,\text{MPa·m} \).

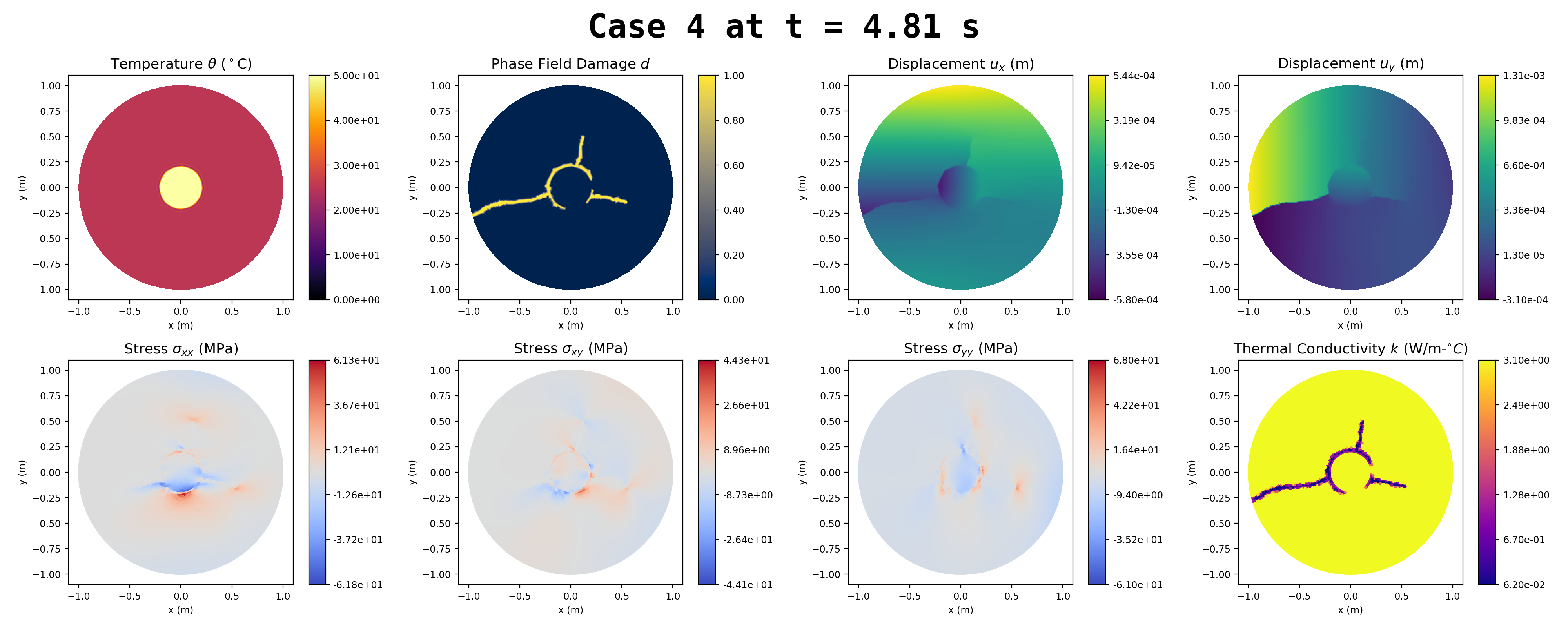

4. Case 4: Same as Case 2, but core temperature only rises from 25 °C to 50 °C.

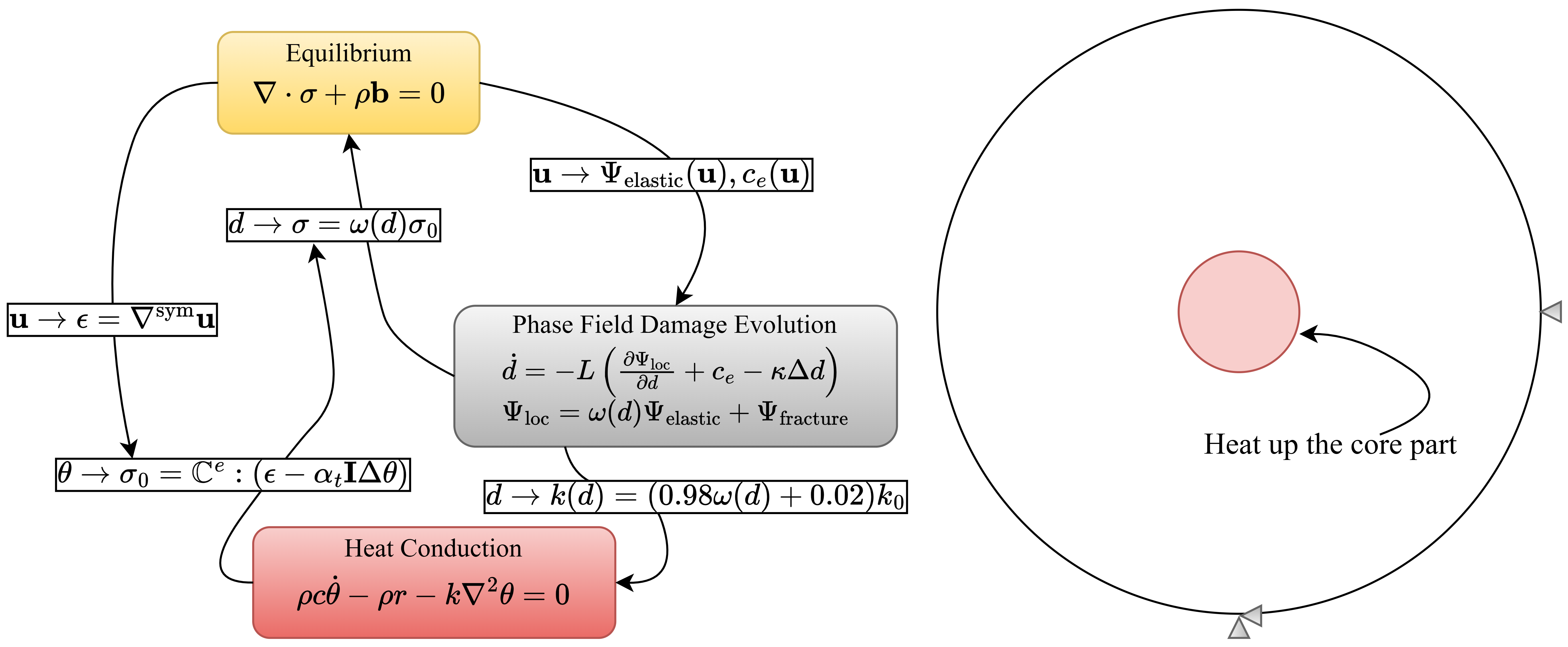

The model solves three governing equations: phase field fracture (PF), mechanical equilibrium, and heat conduction equation. Their interactions are summarized as:

🔁 Equilibrium ↔ Heat Conduction Equation:
  • \( \mathbf{u} \) contributes to total strain \( \epsilon = \nabla^{\text{sym}}\mathbf{u} \).
  • Temperature \( \theta \) is used to compute the trial undamaged stress \( \sigma_0 \), which is passed into the phase-field model.

🔁 Heat Conduction Equation ↔ Phase Field:
  • The damage variable \( d \) affects thermal conductivity \( k \), which is assumed to drop to 2% of the intact value when fully damaged.
  • In some models, the energy release rate \( G_c \) depends on \( d \) or \( \theta \), but that’s typically for high-temperature scenarios — not considered here.

🔁 Equilibrium ↔ Phase Field:
  • \( \mathbf{u} \) feeds into phase-field through the elastic energy \( \Psi_{\text{elastic}} \) and an additional driving force term \( c_e \).
  • The damage field \( d \) then degrades \( \sigma_0 \) to compute the final stress \( \sigma \).

🚀 Multi-Physics System and Boundary Conditions

🔑 Key Highlights

✅ Implementation of coupling system by loosely coupled setting.

✅ Manually established interaction between thermal and phase field systems.

⚠️ Note 1: Any physical system is associated with a corresponding energy contribution, which can enter the phase-field fracture governing equation as part of the local driving force term. This is often written as: \[ \frac{\partial \Psi_{\text{loc}}}{\partial d} = \frac{\partial \Psi_{\text{elastic}}}{\partial d} + \frac{\partial \Psi_{\text{fracture}}}{\partial d} + \frac{\partial \Psi_{\text{other}}}{\partial d} \] where \(\Psi_{\text{other}}\) may represent additional physics such as thermal energy (\(\Psi_{\text{thermal}}\)) or fluid energy (\(\Psi_{\text{fluid}}\)) in porous flow systems. However, in a physical sense, thermally induced fracture arises primarily from the thermal stress, not from the temperature itself. As a result, it is common practice to exclude \(\Psi_{\text{thermal}}\) from the governing phase-field equation. Instead, temperature-dependent material parameters (e.g., conductivity in the present case) are coupled with the damage variable \(d\), capturing the thermal effects indirectly but effectively.

⚠️ Note 2: While using loosely coupled systems may compromise accuracy, extra care on convergence criteria is required. In this case, the nonlinear residual tolerance is set to \( 1 \times 10^{-7} \).

⚠️ Note 3: The heat conduction equation is generally written in divergence form as: \[ \rho c \dot{\theta} - \rho r - \nabla \cdot (k \nabla \theta)=0. \] When the thermal conductivity \( k \) depends on the damage field \( d \), it becomes spatially varying. Although a formal expansion of the divergence term gives: \[ \nabla \cdot (k \nabla \theta) = k \nabla^2 \theta + \nabla k \cdot \nabla \theta, \] this expansion is not required in the weak form formulation. In particular, when the equation is discretized using the standard weak form, \[ \int_\Omega \nabla \delta \theta \cdot (k \nabla \theta)\, d\Omega, \] the effect of spatially varying \( k \) is already embedded in the formulation. Therefore, no additional term involving \( \nabla k \) needs to be explicitly implemented. In the present benchmark, the thermal conductivity is degraded as a function of damage, but the coupling is treated in a simplified manner without a fully consistent linearization (i.e., off-diagonal Jacobian terms are not explicitly included).

🚀 Primary Variables and Material Response (Click figure to see animation)

✅ From Case 1 and Case 2, the fracture patterns differ due to whether damage in the core is allowed or not.
✅ In Case 3, since both core and outer shell share the same toughness, and the core is laterally confined, damage spreads more uniformly. This is likely influenced by the adopted phase-field formulation without elastic energy decomposition — hence compressive stress may also trigger damage. Here, tensile and compressive contributions are differentiated using the finite-epsilon model.
✅ In Case 4, the crack propagation is less aggressive than in Case 2, which aligns with expectations due to the lower temperature rise.

---

---
